Product Description

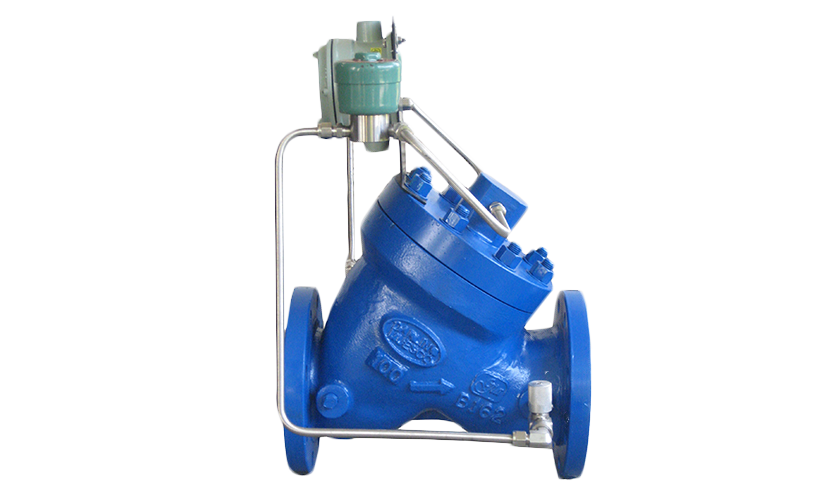

Darling Muesco’s Digital Control Valves (DCVs) are diaphragm-actuated, hydraulically operated valves engineered for precise fluid control, including set-stop applications. These valves are electro-hydraulically operated, self-actuated via diaphragm, and designed with resilient seating to ensure zero leakage (Class VI as per ANSI FCI-70-2). They come in multiple configurations—standard globe (F113-40R), Y-pattern (F2113-40R), and anti-cavitation trim (F113-40ACT-R)—to suit various flow requirements. The DCVs utilize F100 or F2100 basic valves featuring packless, stainless steel construction, epoxy coating for corrosion resistance, and top-bottom guidance for vibration-free operation. The system integrates explosion-proof solenoid valves (1 NO + 1 NC), speed control via needle valves, and Y-strainers to prevent dirt ingress. Electrical components are CCOE/CMRI/PESO certified, and optional limit switches are available. Operationally, the valve switches between low and high flow rates based on preset volumes controlled by batch controllers. Its design enables multi-stage flow management, including soft starts, high-flow delivery, and controlled shutoff sequences to prevent spills. Cv values and flow rates are provided across multiple valve sizes, with flow charts supporting application-based selection. Widely used in clean liquid and LPG control systems, these DCVs are suitable for high-pressure differentials and low-flow scenarios. They are deployed in oil terminals and export globally, including installations across major oil companies in India and several international markets. Darling Muesco is ISO 9001:2008 certified.

Product Details

• Size: 25NB - 400NB
• Pressure Range:Up to 17.5 Kg/cm2
• Proud Installations: IOCL/ BPCL/ HPCL/ RELIANCE
