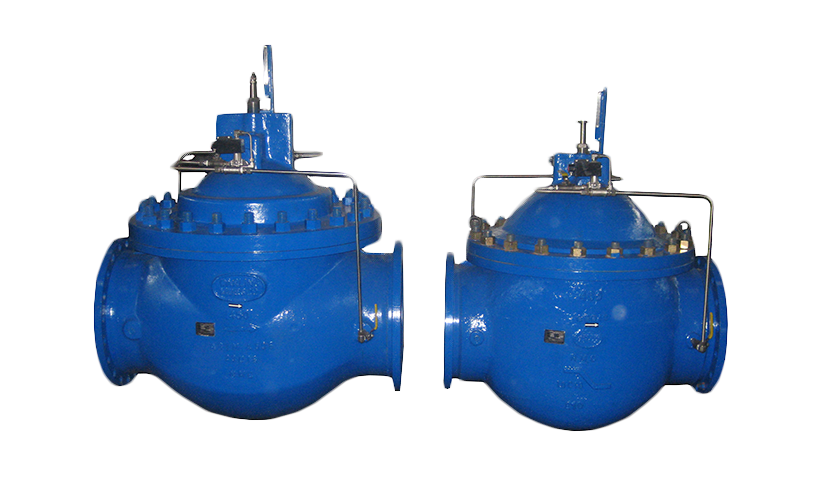

Flow control valve SCADA

Product Description

Darling Muesco flow control valves are specially designed for accurate control of flow and pressure in water works and integrated water supply scheme for villages, towns and city for 24x7 water.

These valve are used as self regulating valve with use of pilot valve for automatic control without power or operated through 2(1 NO + 1 NC) Solenoid Valves.

Flow Control Valve are provided with normally close-sol. valve on inlet side and normally open - sol. valve on outlet side. This ensures that valve remains fully open in case of no power or power failure situation

Product Description

F113-14-EA is Single Phase Electric Actuator Actuated, hydraulically operated flow control valve. It is operated on 4 to 20 mA signal received from flow meter through PLC to position for Set Flow Rate. Operating Voltage can be 230 VAC/ 110 VAC or 24 VDC.

Product Details

  • Size: 1” (25 mm) to 24” (600 mm)
  • Construction material: Ductile Iron with epoxy coated inside and outside
