Product Description

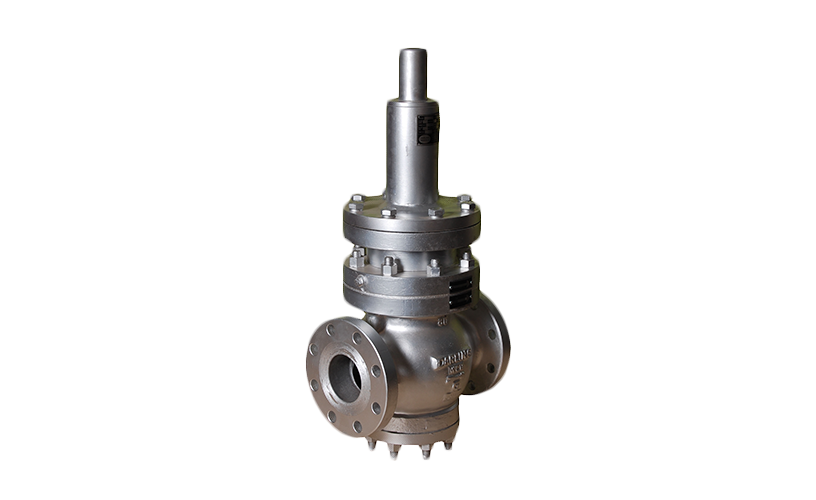

Self Acting, Pilot & Piston operated Pressure Reducing Valves are most popular for pressure reduction of STEAM in all types of Industries. The Valve operates on Spring Balance principle.The Downstream pressure is sensed below stainless steel diaphragm which is balanced by the spring tension. Increasing spring tension, increases outlet pressure and vice versa. The Valve has additional external Sense Line provision also, which improves performance and accuracy of outlet pressure.
Product Details
- Size: 15 NB to 200 NB
- Fluid Supported: Steam
Product Description

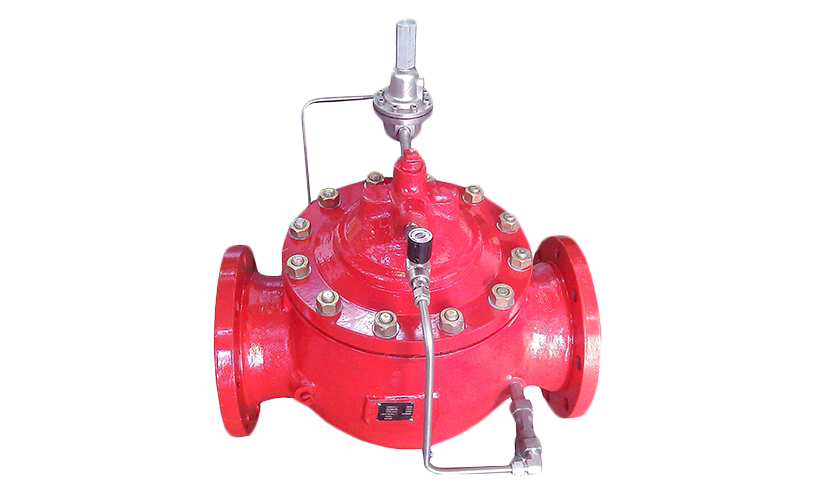

Automatically reduces a higher inlet pressure to a constant lower outlet pressure. The valve consists of a main valve and a Fig. 15 pressure reducing control pilot. Slight changes in downstream pressure acts on topside of control diaphragm causing main Valve to counteract pressure changes and hold a constant outlet pressure. The regulator will reduce the upstream pressure to a constant downstream pressure regardless of the change in flow rates/or inlet pressure.
Product Details
- Size: 25 NB to 400 NB
- Temperature: Standard :20 - 175 Psig,Optional : 5 - 35 Psig
- Fluid Supported: Liquid
Product Description

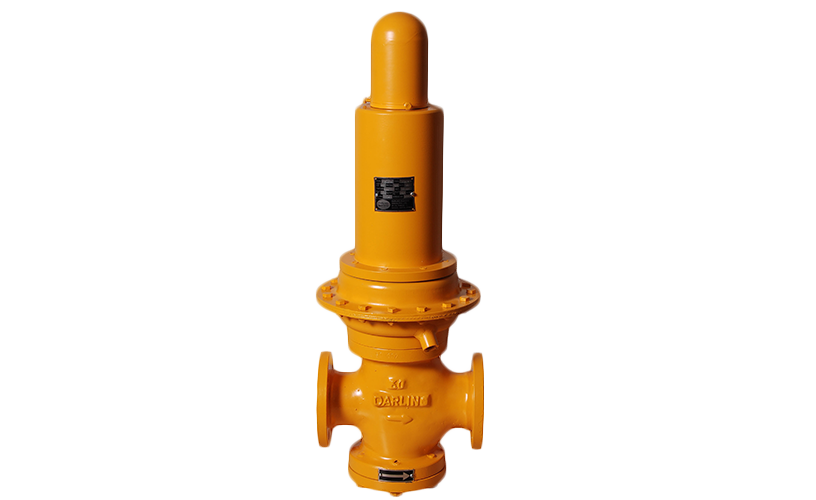

Type F-166HP Regulators are Self Actuated - Spring & Diaphragm operated for precise control of Gas pressure for maximum combustion efficiency in commercial gas installation. The Regulators maintain the outlet pressure steadily irrespective of varying inlet pressure in the pipeline. These high capacity regulators are used for Air, Nitrogen, Natural Gas, Hydrogen and many other Industrial Gases.
Product Details
- Size: 15 NB to 150 NB
- Temperature: Max 20 Kg/cm2
- Fluid Supported: Nitrogen & Gas
- Construction Materials: Cast Steel
- Proud Installation: Thermotech System, Matrix Lab
Product Description
Series F-217 Regulators are Pilot operated for control of gas & air pressure. In single stage, pressure reduction can be achieved very precisely up to 1/10th of the inlet pressure. Pilot operated Regulator gives very precise downstream pressure and very low fluctuation. They are extensively used as active and monitor control in series for Natural Gas Pressure Reducing System. Valve has very high flow Capacity and very precise regulation with the help of Pilot.
Product Details
- Size: 50 NB to 150 NB
- Temperature: Max 20 Kg/cm2
- Fluid Supported: Nitrogen & Gas
- Construction Materials: Cast Steel
